FCS and FCSII Compatible Fins Explained
How FCS Fin Systems Work and Which Fins Fit Your Surfboard
Surfboard fins dramatically affect how your board performs. But before choosing a fin template or size, you need to make sure the fins actually fit your board’s fin system.
Two of the most common fin systems in surfing are FCS and FCS II.
Understanding the difference between them is essential because they are not totally interchangeable.
This guide explains:
What FCS fins are
How FCS II fins work
Which fins fit which boards
How to choose the right compatible fins
What Are FCS Fins?
FCS (Fin Control System) was introduced in the 1990s and became one of the most widely used surfboard fin systems in the world.

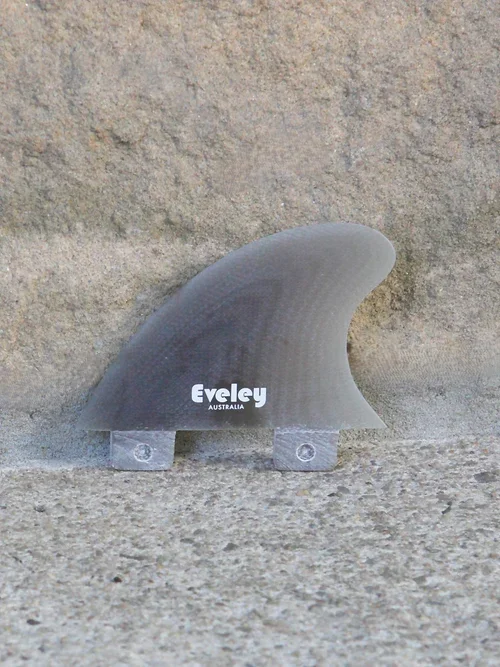

These fins use two small tabs at the base of the fin, which slide into two plugs installed in the surfboard.
The fins are secured with grub screws that hold the tabs in place.
Key Features
Two-tab fin base
Fits boards with FCS plugs
Secured with grub screws and fin key
Many classic surfboards, older boards, and many custom boards still use this system.
What Are FCS II Fins?
FCS II is the modern evolution of the original FCS system.
Instead of two separate plugs, FCS II uses a single fin plug with an internal locking mechanism.
FCS II fins are designed to snap into the fin box without screws, although screws can still be used for extra security.
Key Features
Tool-less installation
Single fin box design
Quick fin changes
This system is now used on many modern production surfboards.
Are FCS and FCS II Fins Compatible?
No.
FCS II fins do NOT fit traditional FCS dual-plug systems.
The base designs are completely different.
FCS fins fit surfboards with traditional FCS plugs.
FCS II fins fit surfboards with FCS II fin boxes.
The two systems are not usually interchangeable, so you must choose fins that match your board’s fin system.
Because the base structure is different, FCS II fins cannot be used in standard FCS plug systems.
If your board has two separate round plugs, it uses the FCS system. These also fit the single elongated fusion FCS fin plugs.
If it has a single elongated fin plug with two different size slots and a coloured integrated locking mechanism, it uses FCS II.
For a broader explanation of surfboard fin compatibility systems, see:
Surfboard Fin Compatibility Explained
How to Identify Your Fin System
Most surfers can identify their fin system in seconds.
Your board uses FCS if:
There are two round plugs per fin
Small screws hold the fin tabs in place
The fins have two small tabs
Your board uses FCS II if:
Fins can snap in without screws
The fin base is longer and integrated
Choosing Compatible Fins
Once you know your fin system, you can choose fins based on size, template and setup.
For example:
Thruster Setup
Three-fin configuration used on most performance surfboards.
Example:
4.5" Progressive Thruster Fins – FCS II Compatible
Quad Setup
Four-fin configuration known for down-the-line speed and hold.
Example:
4.9" / 3.1" DTR Quad Fins – FCS II Compatible
Twin Setup
Two-fin configuration known for speed, flow and smooth rail turns.
Example:
5.7" Upright Twin Fins – FCS Compatible
Why Fin Compatibility Matters
Using the correct fin system ensures:
Proper fit and safety
Maximum performance
Correct flex and drive characteristics
Incorrectly fitting fins can result in loose fins, damaged boxes, or lost fins in the water.
Choosing the Right Fin Size
Compatibility is only the first step.
Fin size also affects:
Speed
Control
Turning performance
To understand how fin size works, see:
Surfboard Fins Guide – Choosing the Right Fin Size
Fiberglass vs Composite Fins
Material also plays a major role in fin performance.
Fiberglass fins generally provide:
Stronger flex response
Greater durability
More consistent performance
Learn more here:
Fiberglass vs Honeycomb Fins – Real Performance Differences
FAQs
Are FCS fins the same as FCS II fins?
No. They use different base systems and are not interchangeable.
Can FCS II fins fit FCS plug systems?
No. The fin base is completely different.
Do I need tools for FCS II fins?
Not always. Many FCS II fins can snap into the box without screws, although screws can still be used.
Which fin system is better?
Both systems perform well. The main difference is installation convenience, not performance.
